Introduction
The YXFAZPP Wheelchair Power Head is a practical device designed to assist manual wheelchair users by adding electric-powered traction. This portable, efficient tool offers a convenient way to enhance mobility without the need for a full electric wheelchair. With its lightweight construction, high-capacity battery options, and user-friendly operation, it supports individuals in navigating daily activities or outdoor trips with greater ease. This article covers the product’s features, specifications, usage instructions, included items, and answers to common questions.
Key Features
- Portable Design: Weighs only 8 kg (excluding battery and connections) for easy transport.
- High-Capacity Lithium Battery: Offers multiple battery configurations with ranges up to 100 ± 10 km.
- Efficient Motor: Features a 600W motor for consistent performance.

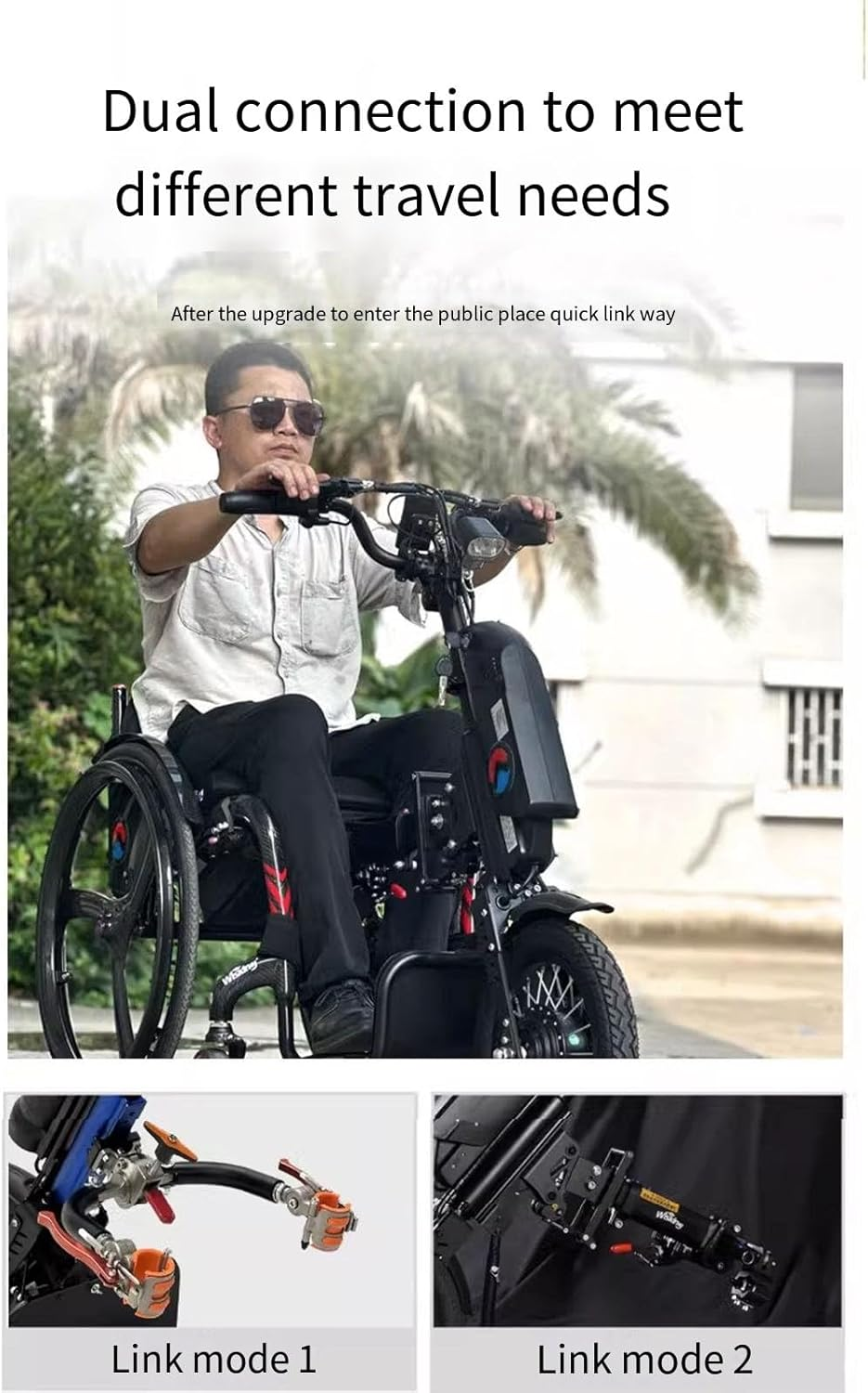

- Flexible Attachment: Connects to wheelchairs via side or middle links for broad compatibility.
- Speed Capability: Reaches speeds up to 25 km/h, suitable for various environments.
- Compact Dimensions: Measures 105 x 56 x 56 cm, simplifying storage and travel.
Specifications
| Feature | Details |
|---|---|
| Name | Wheelchair Pull Head (Model: B40ah) |
| Tires | 14 inches |
| Battery Options |
36V/10Ah: 20 ± 5 km range 36V/15Ah: 40 ± 5 km range 36V/20Ah: 50 ± 5 km range 36V/15Ah*2: 80 ± 10 km range 36V/20Ah*2: 100 ± 10 km range |
| Maximum Speed | 25 km/h |
| Motor Power | 600W |
| Controller | 20AH controller |
| Connection Method | Side or middle link attachment |
| Weight | 8 kg (excluding battery and connections) |
| Dimensions | 105 x 56 x 56 cm |
How to Use the YXFAZPP Wheelchair Power Head
Operating the YXFAZPP Wheelchair Power Head is simple and accessible:

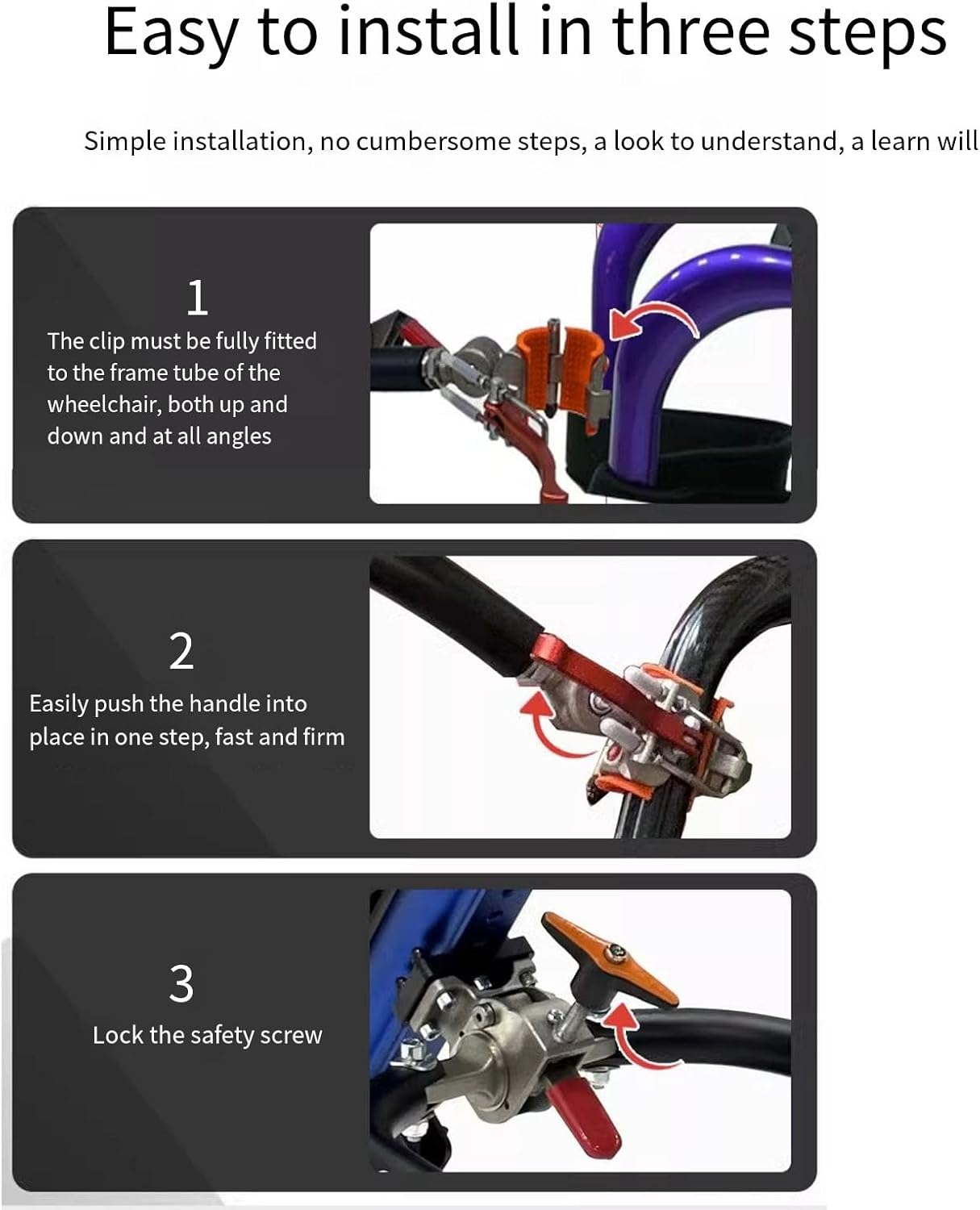

- Attach the Device: Securely connect the power head to your manual wheelchair using the side or middle link method, based on your wheelchair’s structure. Ensure all attachments are stable.
- Power On: Activate the device via the control panel and verify the battery charge level.
- Set Speed: Adjust the speed using the controller, starting at a lower setting to get comfortable with the device.
- Navigate: Steer the wheelchair as usual, with the power head providing forward movement. The 600W motor supports smooth travel across various surfaces.
- Charge and Store: Recharge the battery after use with the provided charger. Store the device in a dry, secure location.
Note: Consult the instruction manual for detailed setup and safety instructions.
What’s in the Box
The YXFAZPP Wheelchair Power Head package includes:
- Main Body: The primary traction unit with a 600W motor and 14-inch tires.
- Instruction Manual: A guide detailing setup, operation, and maintenance procedures.
Note: Battery and connection components may vary depending on the selected battery configuration (e.g., 10Ah, 15Ah, or 20Ah).
Benefits of the YXFAZPP Wheelchair Power Head
- Improved Mobility: Adds electric power to manual wheelchairs, reducing physical effort.
- Portability: Lightweight at 8 kg, making it easy to carry and store.
- Extended Range: Battery options provide up to 100 km of travel distance.
- Wide Compatibility: Adjustable linking options suit most manual wheelchairs.
- Cost-Effective Solution: Offers electric mobility features at an accessible price point.
Frequently Asked Questions (FAQ)
Q: Will the YXFAZPP Wheelchair Power Head work with my wheelchair?
A: It is compatible with most manual wheelchairs using side or middle link attachments. Verify your wheelchair’s frame compatibility and refer to the manual for specific details.
Q: How long does the battery take to charge?
A: Charging time depends on the battery size (10Ah, 15Ah, or 20Ah), typically requiring 4–6 hours for a full charge. Check the manual for precise details.
Q: Can it handle uneven surfaces?
A: The 14-inch tires and 600W motor perform well on smooth and moderately uneven surfaces, such as sidewalks or packed dirt paths. Avoid highly rough or steep terrains for safety.
Q: Is the device suitable for use in wet conditions?
A: The device is durable but not fully waterproof. Avoid heavy rain or wet environments to protect the motor and battery.
Q: How should I maintain the YXFAZPP Wheelchair Power Head?
A: Regularly inspect tires for wear, ensure secure connections, and keep the battery charged. Store in a dry place and follow the maintenance guidelines in the manual.
Conclusion
The YXFAZPP Wheelchair Power Head offers a practical and efficient way to enhance manual wheelchair mobility. Its lightweight design, powerful motor, and flexible battery options make it suitable for a variety of daily activities and environments. Easy to attach, operate, and store, this device provides a reliable solution for users seeking greater independence. Explore the YXFAZPP Wheelchair Power Head to improve your mobility experience with confidence.
